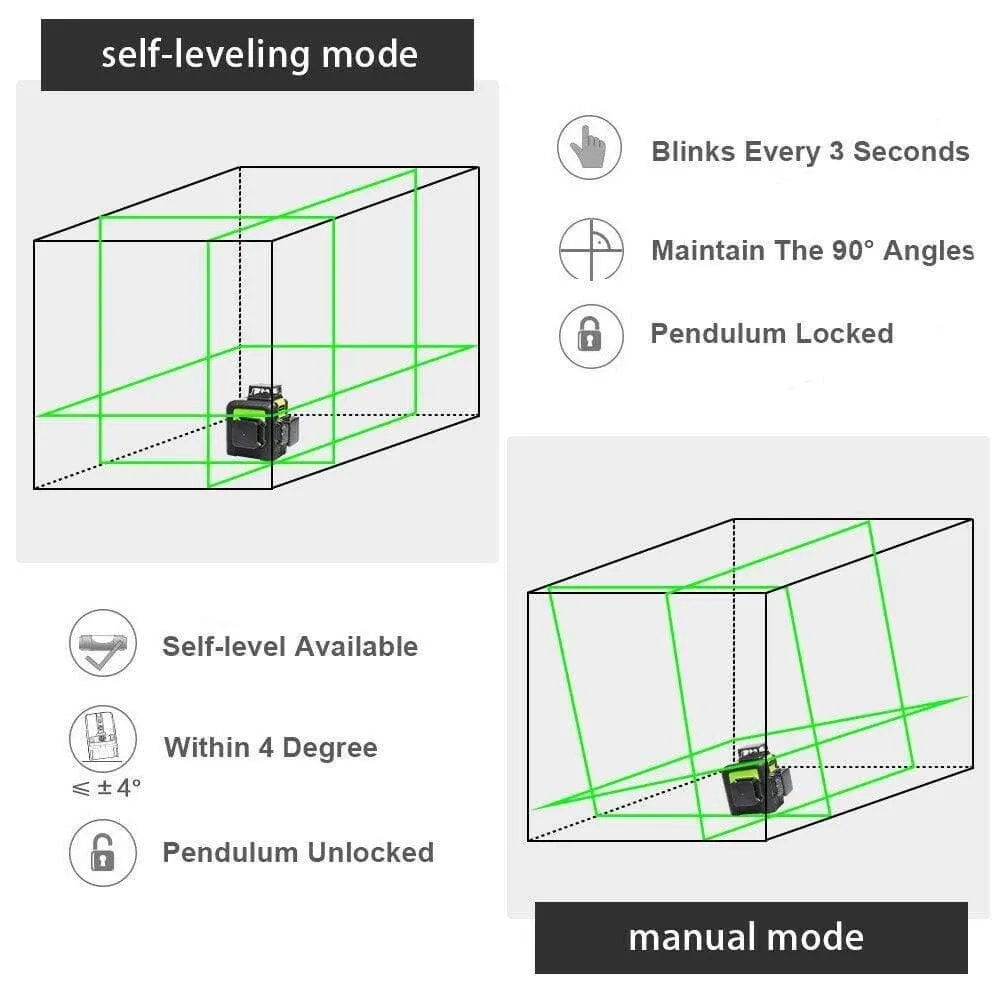

➤ Automatic Mode
Pendulum unlocked. The green laser projections are perfectly level/plumb. The laser beam will flash if the tool is beyond the self-leveling range (4°±1°).
➤ Manual Mode
Pendulum Locked. Projects straight lines depending on the angle at which the laser is placed.
The laser beam will flash every 3-5 seconds to remind you that it is no longer self-adjusting.
Pulse mode：
1. Activate pulse mode:
- Unlock the pendulum
- Hold down the power button for about 5 seconds.
2. For outdoor work, it is strongly recommended to use the

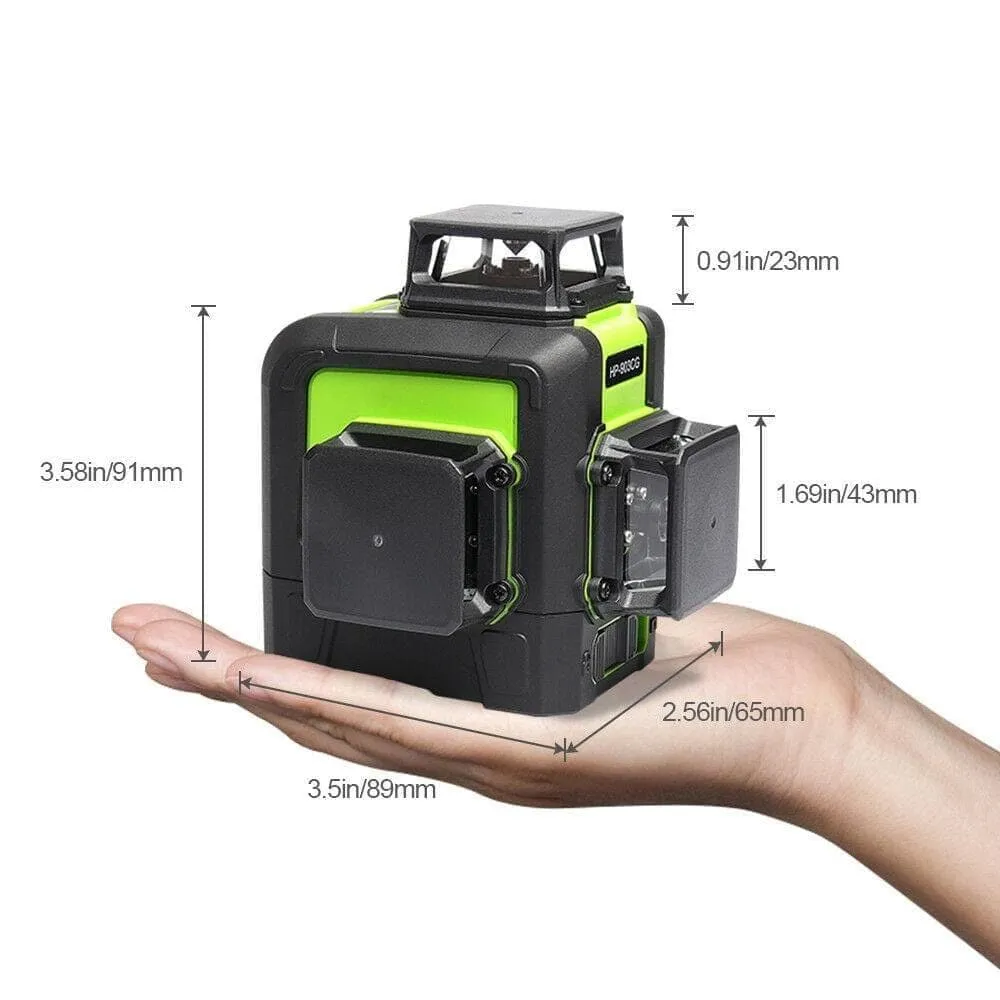

Compact and resistant

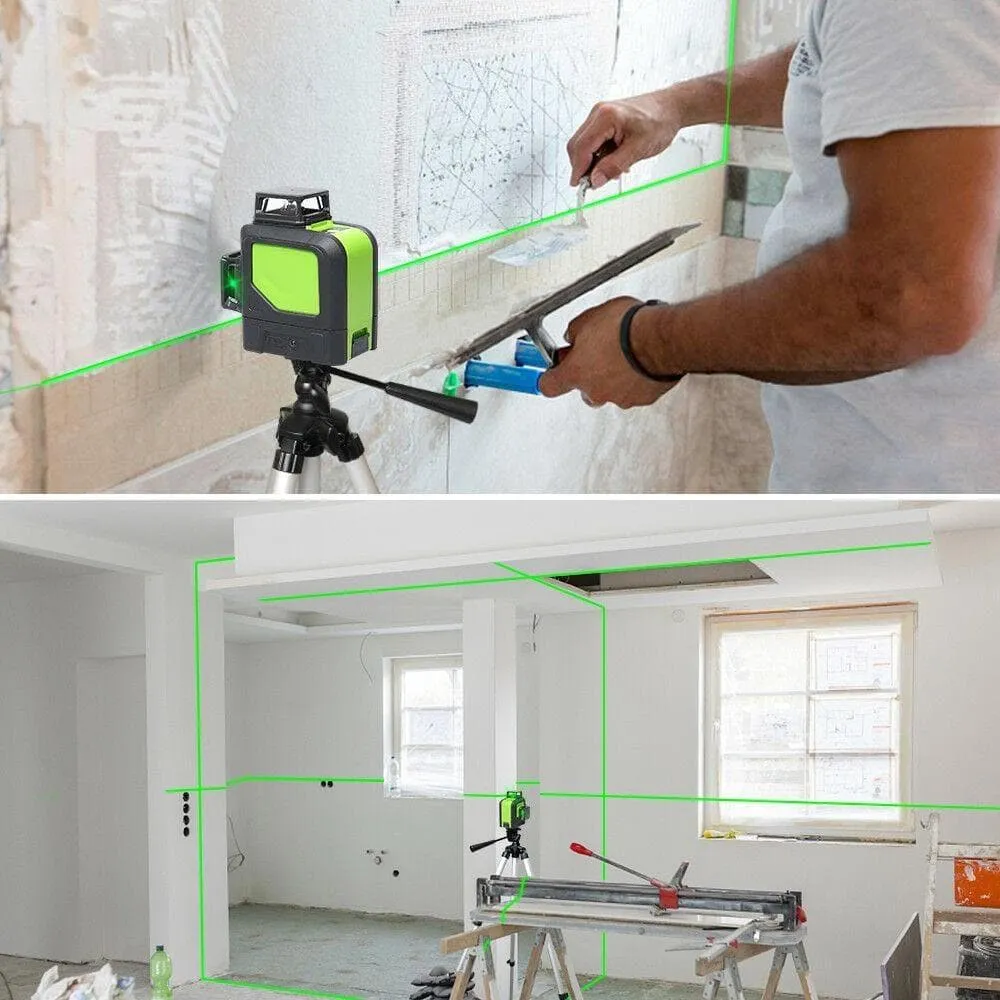

Huepar 903CG 3D laser level is a tools compact et practice for all work leveling and layout (placo, plumbing, renovation or any other work on your sites).

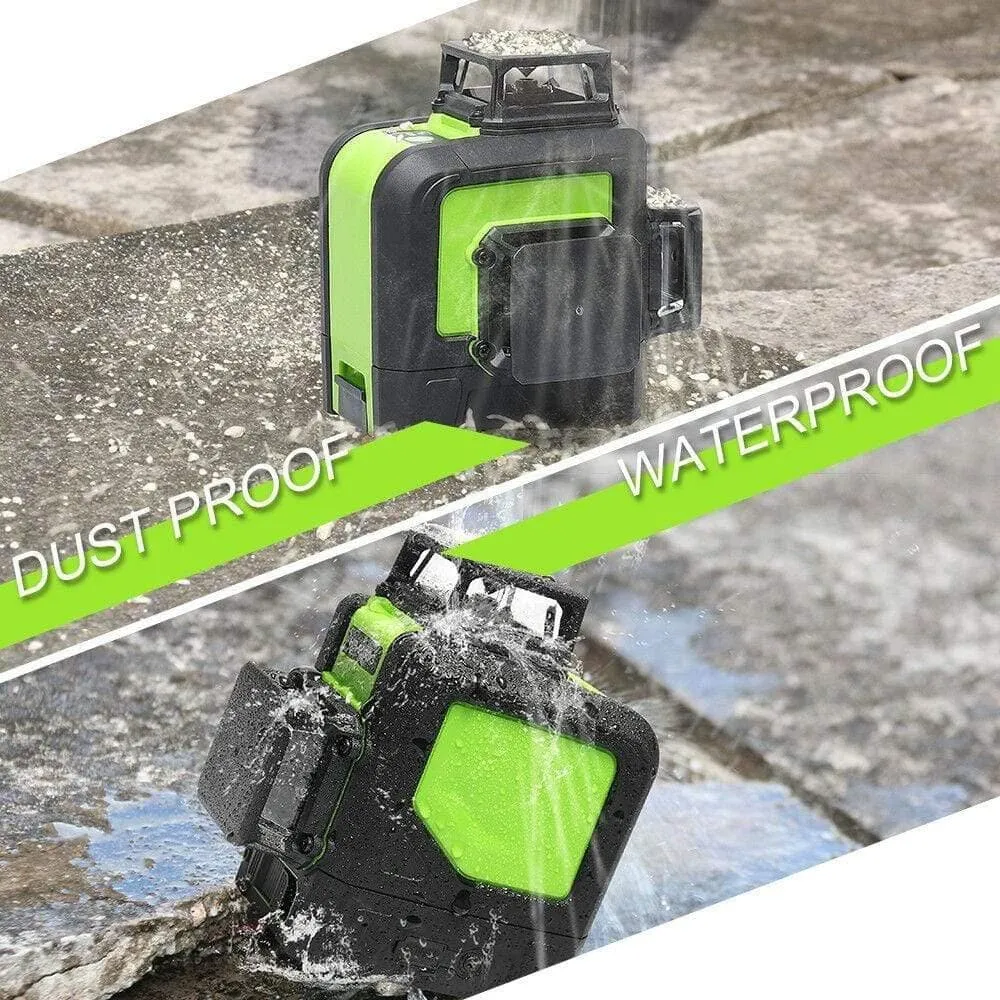

Ingress protection IP54, it is resistant to splashing water and dust
Its case hardened et non-slip protects the laser beams and the pendulum leveling system.

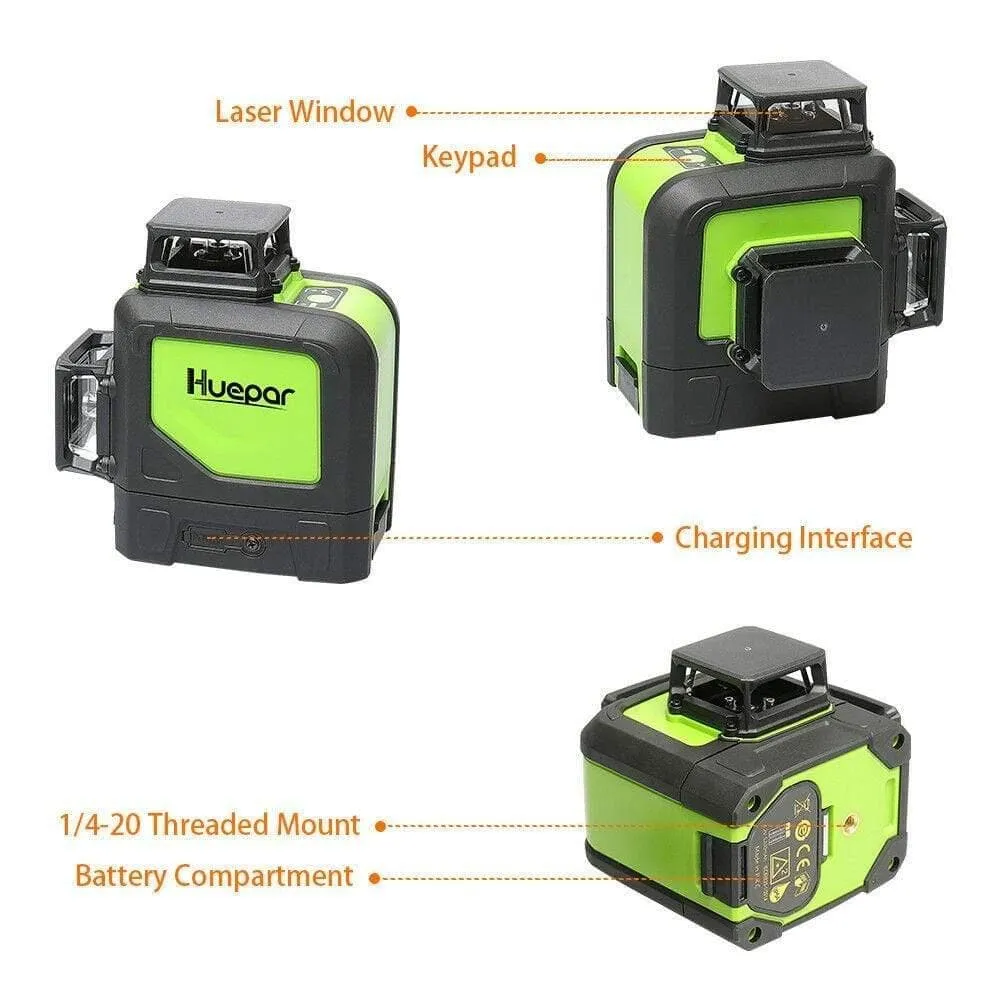

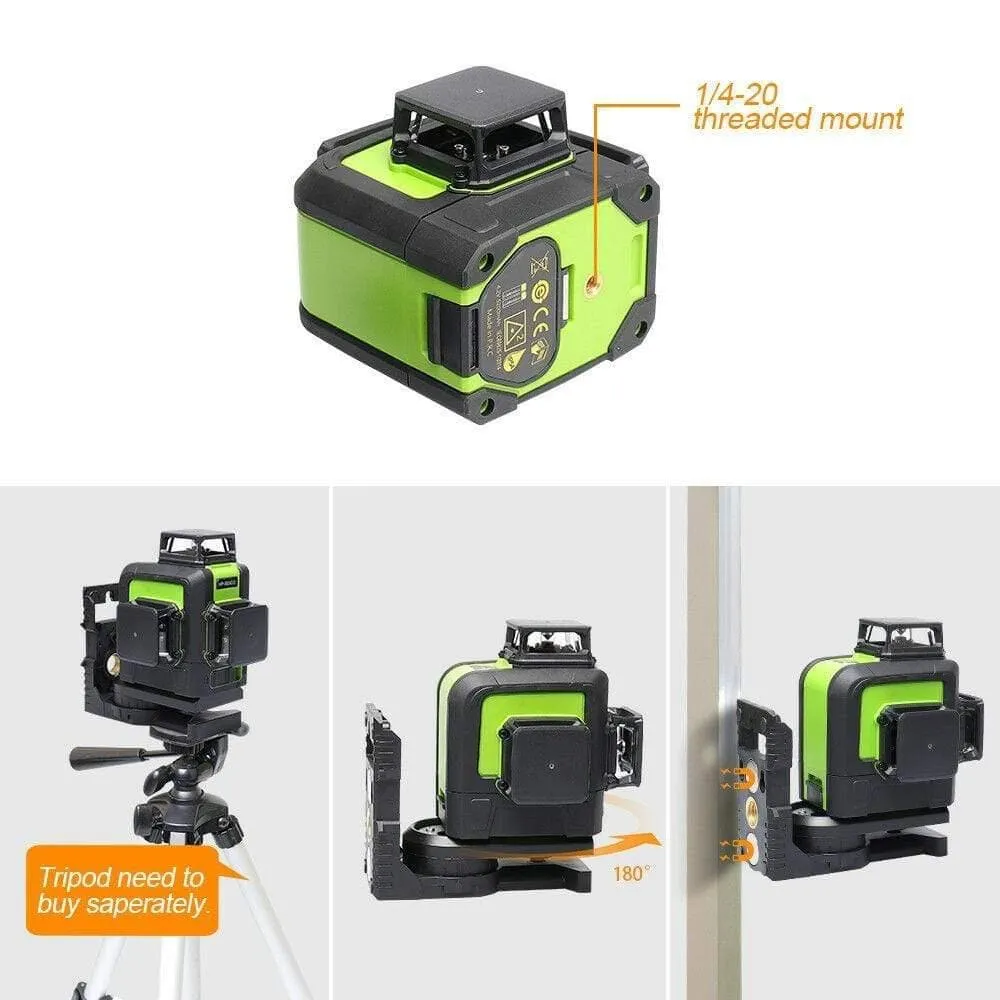

Attaching the laser to tripods and other accessories
The 903G drywall laser level includes 2 mounting nuts with a 1/4" thread and a 5/8" thread on the bottom of the unit. This allows you to mount it on a stand or tripod for safety. The unit can be placed on a regular surface, but fixing it generally guarantees less movement for more precise work. A magnetic base is included in the package.
➤ The strong L magnetic attachment with tripod thread allows the laser to be attached to any steel, rotating 180 degrees as you wish.
➤ It can also accept a standard tripod screw to adjust the height.
Technology "Japan Sharp"
Although of identical function, the visibility of the green laser is 4 times higher to that of the red laser!
The "Japan Sharp" laser unit, is currently the best laser unit.
Your laser always remains precise and visible even under the sun, and is suitable for indoor and outdoor use.
Ignition and instinct
IGNITION: Unlock the laser. It then turns on automatically.

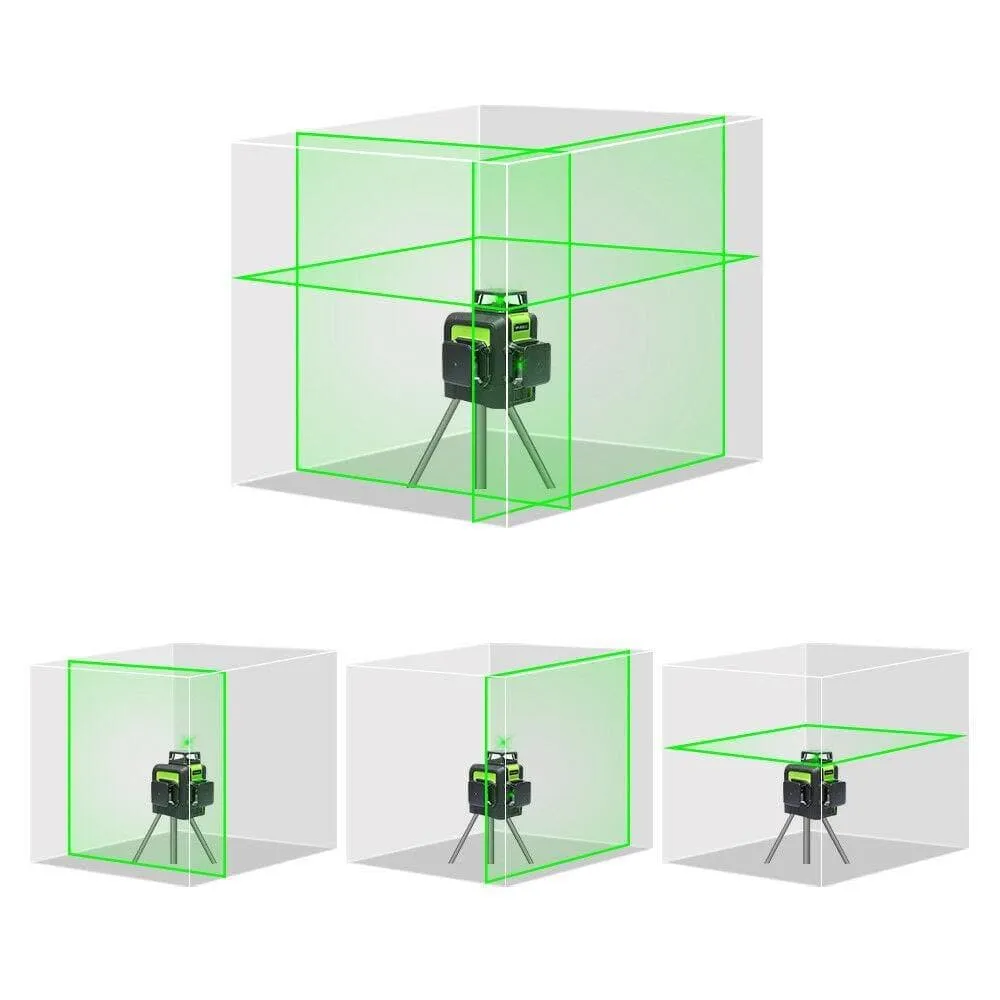

Line change: Once the laser is on, then briefly press the Power button to change the display plan
Activate PULSE mode: Once the laser is on, press the Power button for a few seconds. When the blue light is on the pulse mode is activated.
INSTINCTION: Lock the pendulum, then press the ON/OFF button

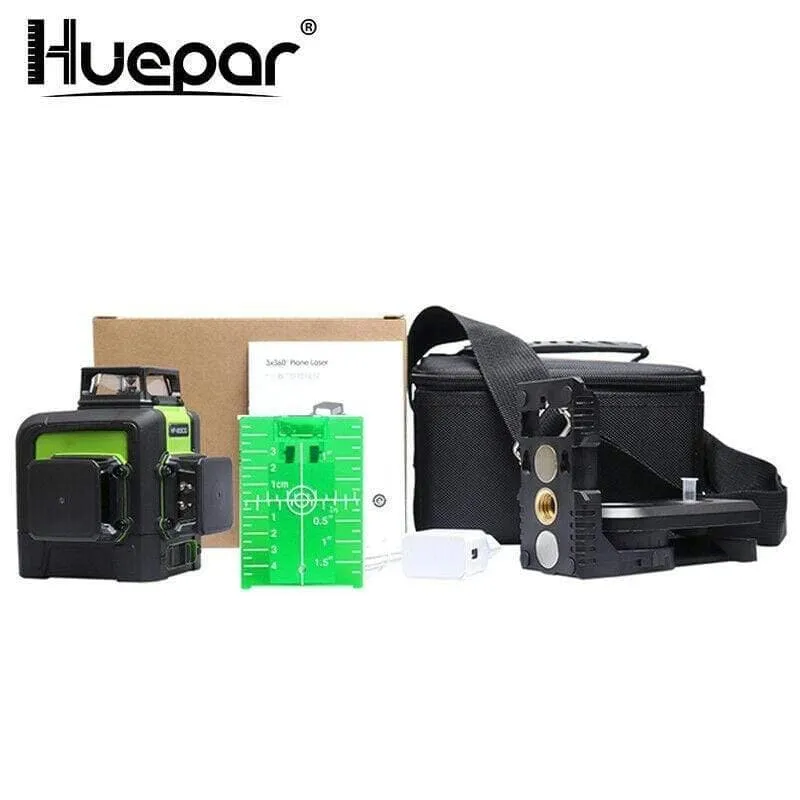

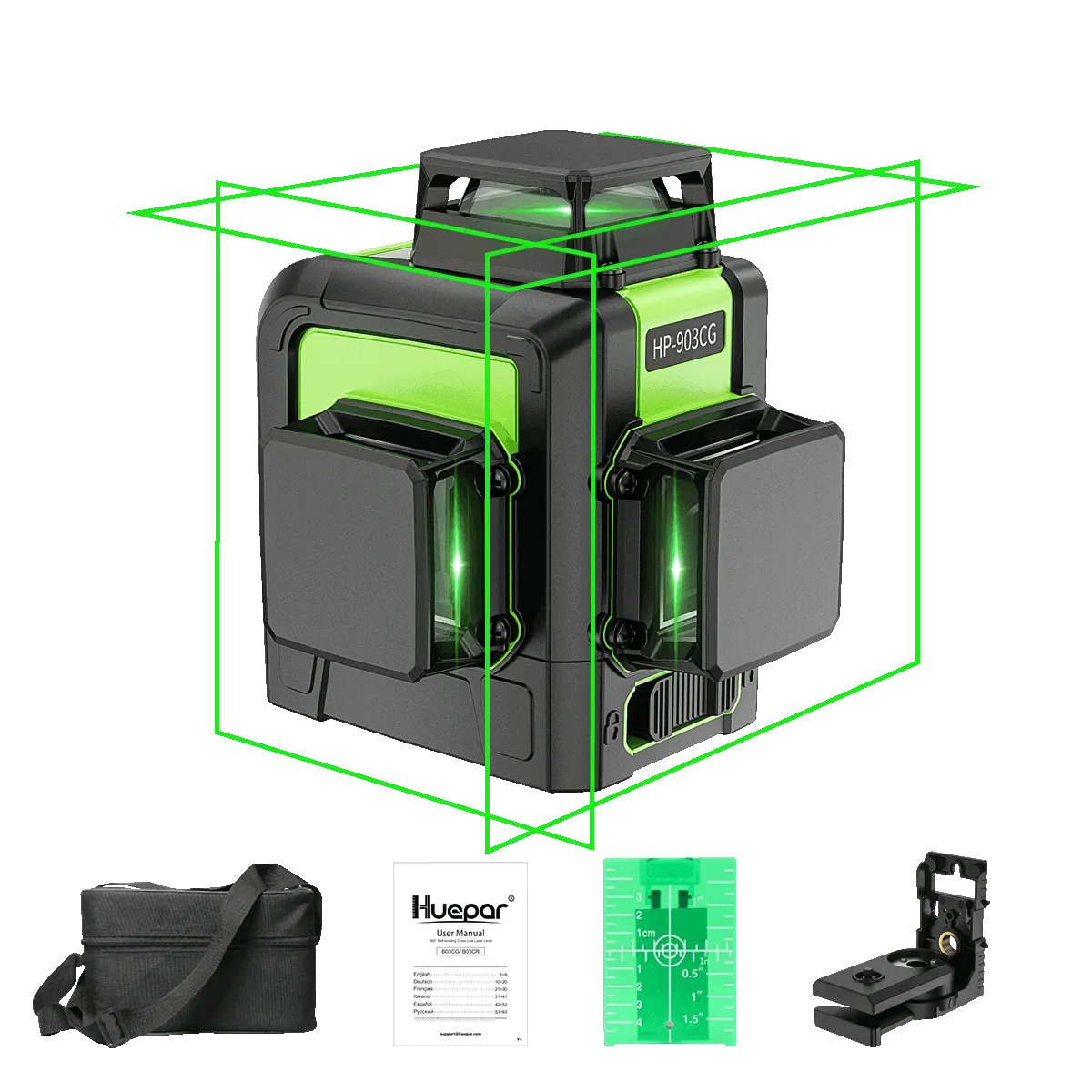

Package content:
- 1 X Huepar 903CG Line Laser Level
- 1 X Batterie Lithium
- 1 X Battery Charger
- 1 X Magnetic Base
- 1 X Target
- 1 X Storage Bag
- 1 X User Manual
